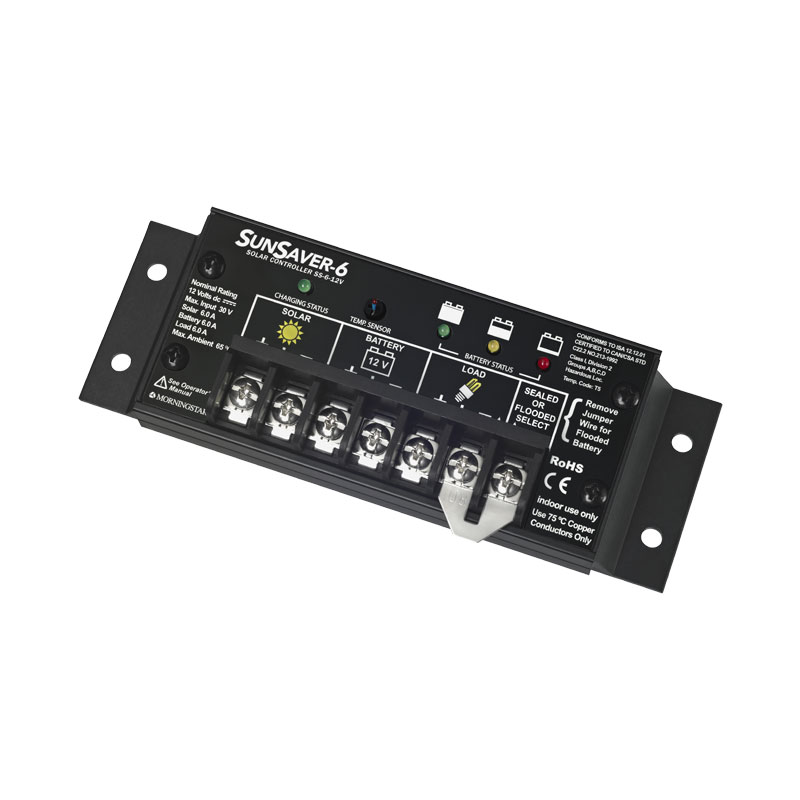

Morningstar's SunSaver is the world's leading small solar controller for both professional and consumer applications. SunSaver's Technoology provides:
- Exceptional reliablity
- PWM Battery Charging
- Consistent High Quality
The SunSaver's advanced design delivers outstanding performance and value. The SanSaver's low cost is made possible by Morningstar's unique approach to design and manufacturing:
- Automated production
- ISO 9002 quality programs
- Latest power electronic technologies
- High volume manufacturing
Features
- Eight versions available (12 and 24 volts, 6, 10 and 20 amps)
- 100% solid state
- Series design (not shunt)
- True 0 to 100% PWM duty cycle
- Setpoing accuracy to 35mV
- Rated for 25% overloads
- Fully encapsulated in epoxy potting
- Marine rated terminals/anodized case
- Temperature compensation
- Sealed/Flooded battery select
- No need to derate
- Parallel for 40 amps or more
- Green charging/Red LVD indicators
- Apporved for used in hazardious locations - Class 1, Division 2, Groups A, B, C,D
| Products |
| Models |
Sk-6, SS-6L, SS-10, SS-10L
SS-10-24V, SS-10L-24V
SS-20L, SS-20L-24V |
| Mechanical Specifications |
| Wire Size |
#10 AWG (5.2 mm2) |
| Enclosure |
Anodized Aluminium case |
| Terminals |
Marine rated |
| Tropicalization |
Epoxy encapsulated |
| Weight |
8 0z (0.23 kg) |
| Electrical Specifications: |
| |
12 Volt |
24 Volt |
| Rated Solar Input |
6.5/10/20 A |
| Rated Load |
6/10/20 A |
| 25% Current Overload |
5 min. |
5 min. |
| Regulation Voltage: |
| Sealed Battery |
14.1 V |
28.2 V |
| Flooded Battery |
14.4 V |
28.8 V |
| Load Disconnect |
11.5 V |
23.0 V |
| LVD Reconnect |
12.6 V |
25.2 V |
| Temp. Comp. (mV/oC ) |
-28 |
-56 |
| Self-consumption |
6 to 10 mA |
| Operating Temperature |
-40 to +85oC |
