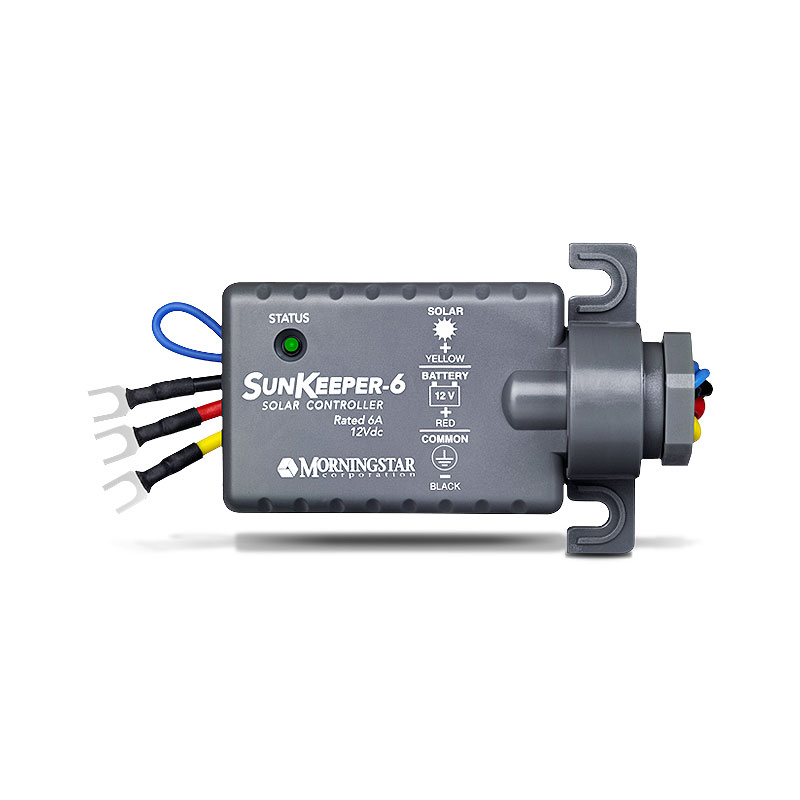

Morningstar's SunKeeper solar controller provides a low cost regulated output directly from the solar module to maximize battery life in small solar power applications. The SunKeeper is epoxy encapsulateed and rated for outdoor use. By mounting directly to the module junction box and wiring through the junction box knockout, the connection is weather proof. This eliminates the need for an additional housing for the controller.

The SunKeeper is available in a 6 amp or 12 amp version (both at 12 volts DC). To withstand the high temperatures at the solar module, the controller has been designed using extremely efficient power electronics and is rated to 70oC. The SunKeeper is also certified for use in Class 1, Division 2, hazardeous locations, making it an ideal controller for solar powered oil/gas applications.

Key Features and Benefits:

• High Reliability Rated to 70oC to operate in temperatures at the solar module. More reliable than controllers mounted inside the junction box. Uses very low on-resistance power MOSFET's. No need to re-rate
• Outdoor Rated ETL approved for outdoor use without an additional enclosure. Rugged IP65 ,UV resistant case. Epoxy encapsulated printed circuit board and watertight connection to the module junction box
• Extensive Electronic Protections Fully protected against reverse polarity, short circuit, overcurrent, lightning and transient surges, high temperatures and reverse current at night.
• Longer Battery Life Series PWM with 3 state charging: bulk, PWM regulation and float. Includes temperature compensation at the controller or alternatively at the battery whn using optional remote temperature sensor. Able to charge a zero voltage battery.
• Rated for Hazardious Locations Specially designed for solar power systems in the oil/gas industry. Apporved for use in Class 1, Division 2, Groups A, B, C, D.
• More Information Bi-color led is easy to read from the ground when the solar module is pole-mounted. INdicates solar charging, regulation, normal nighttime operation and any controller or system faults.
• Easy to Install Fits standard half inch conduit knockout (PG 13.5, M20) in module junction box. Quick fastens with include locknut. Wires have fork connectors for easy connection to solar module terminals.

Electrical Specifications
Rated Solar Input for: SK-6 / SK-12	6 amps / 12 amps
Nominal System Voltage	12 Volts
Minimum Battery Voltage	O Volts
Maximum Solar Voltage	30 Volts
Tropicalization	Epoxy encapsulated
Self-Consumption	Charging ... 7mA Night ... 2mA
Voltage Accuracy	±150 mV
Battery Charging
Regulation Voltage	14.1 Volts (at 25oC)
Float Voltage	14.1 Volts (at 25oC)
Type of charging	Series PWM, 3 stage: bulk, PWM and float
Temperature Compensation:
Reading temp at contoller	30 mV / oC
Attaching temp sensor	30 mV / oC
Disable temp comp	Defaults to 25oC
Ability to charge a Zero Voltage Battery
Electronic Protections
Reverse Polarity	Lightning and Transient Surges
Short Circuit	High Temperatures
Overcurrent	Reverse Current at Night
Environmental Specifications
Operating Temperatures	- 40 oC to +70oC
Humidity	100%
Tropicalizations	Encapsulated in epoxy, UV resistant plastic enclosure Conduit protection with rubber gasket seal
Mechanical Specifications
Dimension	99 x 51 x 13 mm (3.9 x 2.0 x 0.5 inches)
Weight	0.11 kg / 0.25 lbs
Enclosure	IP65
Fitting to Module J-box	PG 13.5, M20, 1/2 inch conduit
Wire Size	2.0 mm2 (#14 AWG)
Wire Terminations	#8 fork connectors
Bi-Color LED
Green Blinks 3 Times	Successful installation
Green On	Solar charging battery
Green Blink Fast	In regulation
Green Blink Slow	Normat nightime operation
Red On	Controller damaged
Red Blink	System problem
LED Off	No power
Options
Remote temperature sensor
