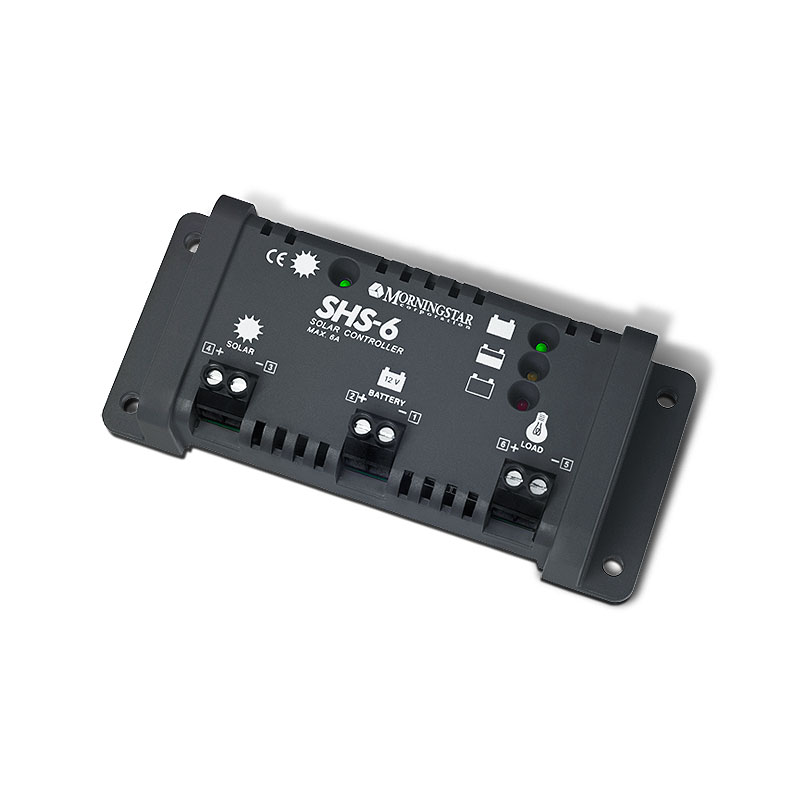

Morningstar's well known high quality and reliability is now available in a low cost solar controller. The SHS Controller is ideal for rural electrification systems with one to three solar panels. This controller meets World Bank specifications and provides many features and benifits.
Benefits of a Solar Controller:
- Reduces Cost of Battery Replacemetns
The low voltage disconnect will increase battery life.
The loads are automatically disconnected when the battery is low and automatically reconnected after the battery is recharded.
Complete charging will increase battery life and storage capacity.
The controller will maximize the amount of solar energy into the battery and avoid drying out the battery.
- Provides Useful Information
LEDs display status information and battery level which helps the user to better operate the solar power system.
Advantages of the SHS Controller:
- Low Cost
The SHS was specifically designed to meet the needs of the rural electrification market. The low cost resulted from using the latest electronic technology and high volume manufacturing.
- High Reliability
Morningstar is a world leadign supplier of solar charge controllers. All the controllers are designed for high quality and high relaibility. The SHS Controller has a low failure rate and will last a long time.
- Electonic Protections
The SHS has built-in electronic fuses that don not require replacement. Any wiring mistakes during installation will not damage the controller.
- Tropicalization
The SHS electronics are protected with moisture-tight coating, minimizing damage from humidity and from nesting insects.
- Easy to Use
The SHS controller is fully automatic and require no adjustments or user selections.
Technical Information
|
| Ratings |
12 Volts |
| SHS-6 |
100 Watts or Amps for solar and load |
| SHS-12 |
100 Watts or Amps for solar and load |
| Electrical Specifications |
| Regulation Point |
14.3 Volts |
| Low Voltage Disconnect |
11.5 Volts |
| Low Voltage Reconnect |
12.6 Volts |
| Type of Charging |
Series PWM
4 Stage: Bulk, PWM, Boost & Float
Temp compensated charging |
| Electronic Protections |
| Short circuit & overcurrent |
Solar and load |
| Reverse polarity |
Solar, load, battery |
Reverse Current
|
At night |
| High Voltage |
Load |
| Lightnming |
Solar, load , battery |
| Tropicalization |
| Circuit Board |
Conformal coated |
| Terminals |
Corrosion protectd |
| LED indications |
| Green |
Charging |
| Gren-Yellow-Red |
Battery levels |
| Red |
Low voltage warning & Disconnect |
| All 3 LEDs blink |
To show mistakes |
| Terminals |
For wire sizes to 4 mm2 |
| Dimensions |
15.1 x 6.6 x 3.6 cm |
| Weight |
113 g |
| Self Consumption |
8 mA maximum |
| Temperature |
- 25oC to +50oC |
| Humidity |
100% non condesing |
| Enclosure |
IP 22 |
| Compliance |
CE, World Bank |
