ATT SB V12-140

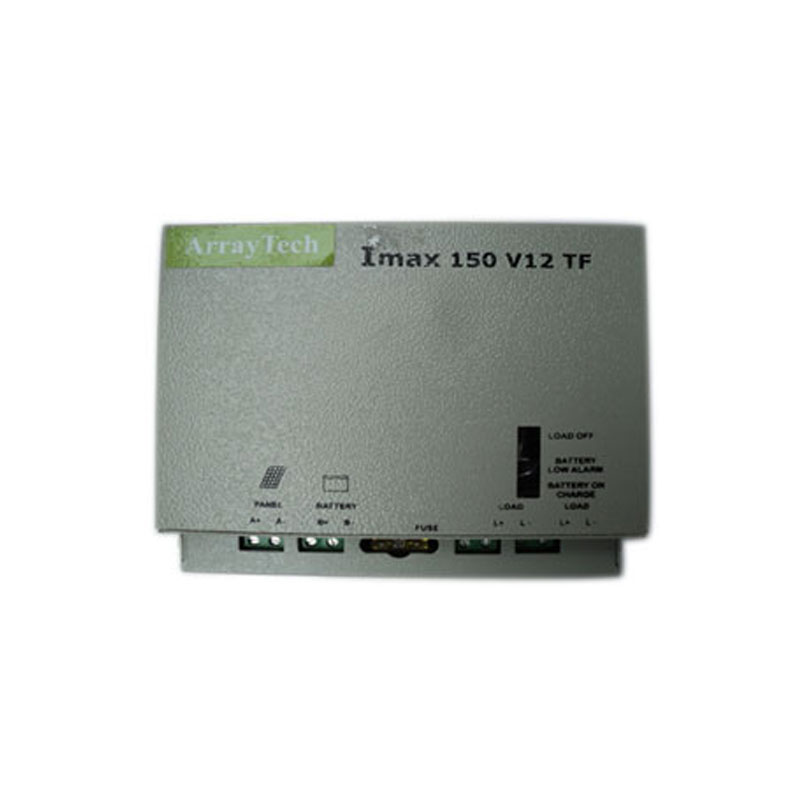

Array Tech 12V/10A solar controller with MPPT Technology is an advanced maximum power point tracking (MPPT) battery charger for photovoltaic (PV) systems up to 150Wp. The controller provides the Industry's highest peak efficiency of 96% and significantly less power loss compared to other MPPT controllers.
The salient features include:
- Maximization of Solar Energy Harvest
- Higher Power Conversion Efficiency
Technical Specifications for Model No: ATT SB V12- 140
| SN |
Description |
Ratings/Remarks/Protections |
| 1. |
Solar Input Power |
140W |
| 2. |
System Voltage(DC) |
12V |
| 3. |
Battery Operating voltage(DC) |
10.5V-14V |
| 4. |
Solar input Current |
10A |
| 5. |
Battery Charging Current |
10A |
| 6. |
Peak Efficiency |
96% |
| 7. |
Maxi. Solar Open circuit voltage |
54V |
| 8. |
Solar: Overload, Short Circuit, High Voltage |
Yes |
| 9. |
Battery: High Voltage |
Yes |
| 10. |
Reverse Current/Surge Protection |
Yes |
